Produktinformation

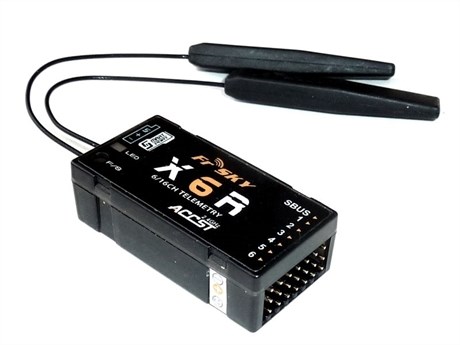

Frsky X6R Mottaker med 6 konvensjonelle kanaler og 16 SBUS kanaler.
FrSkys X6R receiver features 16 channels (6 normal PWM outputs and all 16 channels on the dedicated Sbus output). Plus the exciting new Smart Port and a traditional A2 port on the bottom. Pull the jumper and connect an FBVS for basic external voltage monitoring.
Smaller than the X8R, but still packing 16 channels and the new Smart Port that supports the new hubless digital sensors! Or, connect the new vario, and then connect the old hub to use existing analog sensors.
Specs:
Compatibility : FrSky DFT/DJT/DHT/DHT-U in D_mode / FrSky Taranis X9D/XJT in D8 mode / FrSky Taranis X9D/XJT in D16 mode
Firmware Upgradable - Yes
Weight - 12,2g
Case - 47 x 23 x 14mm (L x W x H)
Operating Range - full range (>1.5km)
Operating Voltage Range - 4.0-10V
Operating Current - 100mA at 5V
Number of Channels - 16CH (1-6ch from conventional channel outputs, 1-16ch from SBUS)
