PS! Produkttexten är maskinöversatt från norska.
Innehåll:
1X Bluetooth PCB
1X 5PIN-kabel
1X 3M dubbelsidiga band
1X värmekrympslang
1X manuell
Product details in english

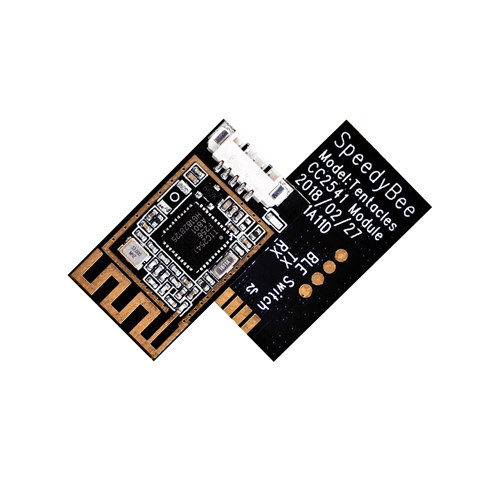

The SpeedyBee Bluetooth UART Adapter helps you configure your flight controller settings directly from your phone or tablet without having to plug into your computer every time. The Bluetooth signal also shuts down when your throttle is armed so that there is no interference during flight. As soon as the throttle is disarmed, the signal activates automatically.
Once you download the SpeedyBee app (requires at least iOS 10 or Android 4.3+) you will be able to tune your quad through the Betaflight configurator. The app also supports CLI and PID settings.
Includes
1x Bluetooth PCB
1x 5PIN Cable
1x 3M Double-sided Tapes
1x Heat shrink tube
1x Manual
Specifications
Output Power: 0dBm
Receiver Sensitivity: -94 dBm
External Interfaces: BROADCAST SWITCH, TX, RX, 3~5V DC Input, GND
Transmission rate: Bidirectional 1K/S
Bluetooth Protocol: Bluetooth Specification V4.0 BLE
Transmission distance: 30m
Frequency range: 2400 MHZ - 2483.5MHZ(2.4G ISM Band)
Baud rate: 2400,4800,9600,14400,19200(default),28800,38400,57600,76800,115200,230400
Operating Voltage: 3.3V - 5.0V DC
Working current: 8.3mA~10mA
Weight: 1.4g
Dimensions: 27*15*4.5mm
