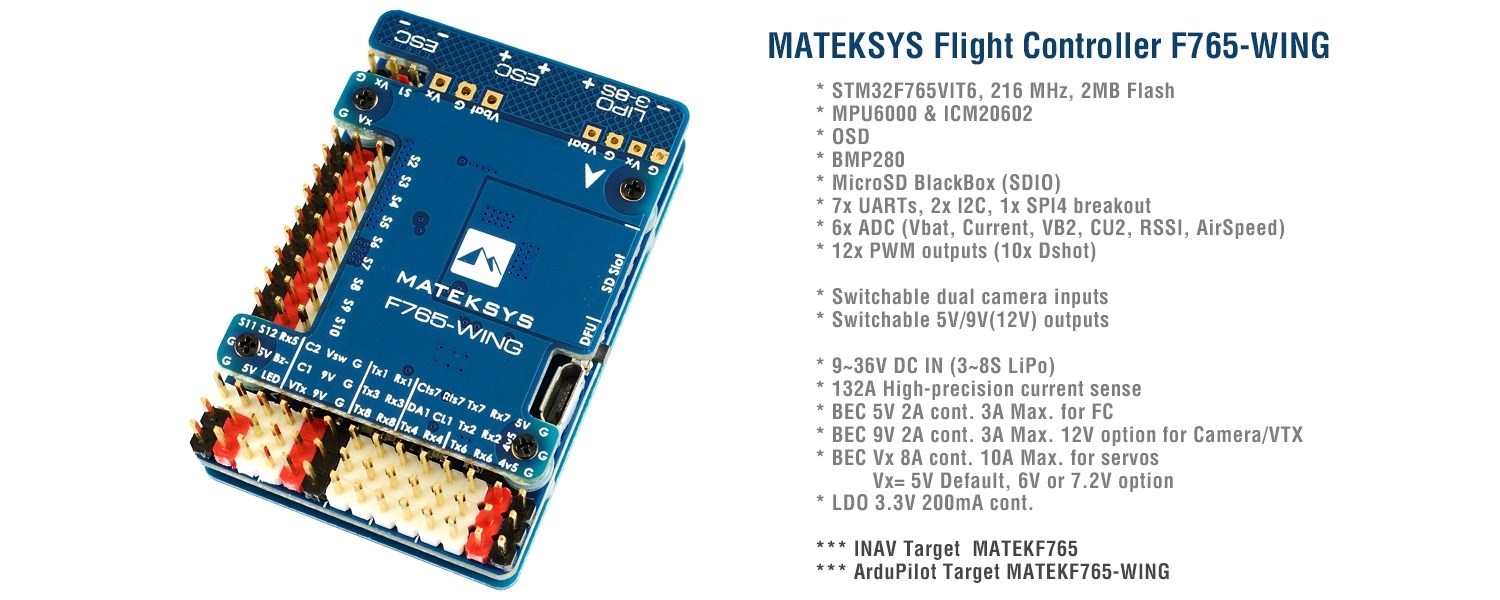

Mateksys F765-WING är en flygkontroll för flygplan med inbyggd PDB, dual-bec, strömmätare, barometer, OSD, blackbox och mer.
PS! Produkttexten är maskinöversatt från norska.
Product details in english
FC Specifications
MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB FlashIMU: MPU6000 (SPI1) & ICM20602 (SPI3)Baro: BMP280 (I2C2)OSD: AT7456E (SPI2)Blackbox: MicroSD card slot (SDIO)7x Uarts (1,2,3,4,6,7,8) with built-in inversion.1x Softserial1_Tx (INAV)12x PWM outputs (S1~S10 support Dshot)6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)2x I2C1x SPI4 breakoutSwitchable Dual Camera InputsSwitchable 5V/9V(12V) for Camera/VTXHigh-precision Current SenseADC VB2 voltage divider: 1K:10KADC AirSpeed voltage divider: 10K:10KTR/SA VTX control: YesWS2812 Led Strip : YesBeeper : YesRSSI: YesAnalog Airspeed sensor: YesDigital Airspeed sensor: Yes
FC Firmware
INAV Target: MATEKF765ArduPilot(ChiBiOS) Target: MATEKF765-WING
PDB
Input voltage range: 9~36V (3~6S LiPo) w/TVS protection2x ESC power padsBattery Voltage Sensor: 1:10 (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)Current Senor: 132A, 3.3V ADC (Scale 250 in INAV, 40 A/V in ArduPilot)
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeedContinuous current: 2 Amps, Max.3A
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.Continuous current: 2 Amps, Max.3A12V option with Jumper pad
BEC Vx output
Designed for ServosVoltage adjustable, 5V Default, 6V or 7.2V via jumperContinuous current: 8 Amps, Max.10A
BEC 3.3V output
Designed for Baro / Compass module and Spektrum RXLinear RegulatorContinuous current: 200mA
Physical

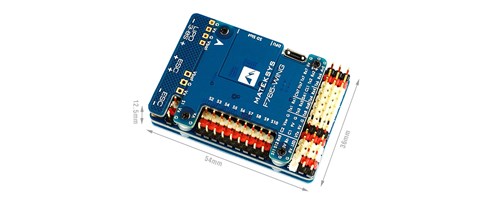

Mounting: 30.5 x 30.5mm, ?4mm with Grommets ?3mmDimensions: 54 x 36 x 13 mmWeight: 26g
