Produktinformation
Allt-i-ett flygkontroll och farthållare i ett bräde. F7 flygkontroll med MPU6000 gyro och plug-and-play-kompatibilitet med DJI hd-systemet. 25,5 mm monteringsavstånd och en låg vikt på 8,8 gram. Den levereras med både XT60- och XT30-kontakt, 2 olika kondensatorer och olika tillbehör.
PS! Produkttexten är maskinöversatt från norska.
PS: Observera att om du vill flyga med en högre spänning än 4S LiPo på DJI Air-enheten, måste du ha BEC dessutom.
Product details in english
What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25x25 whoop size board? That would be crazy right? Well, we just did it...
This is our new iFlight BEAST series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and lets go! DJI Plug&Play plug and so many UARTs most people wouldnt even use em all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more. Unleash the beast!
Top Features:
Vista digital system Plug-and-Play (VBat passthrough)
MCU: BGA-STM32H743 , 480MHz
OSD: AT7456E
Gyro: MPU6000
Blackbox: 16Mb Onboard Flash
BEC output: 5V 2.5A
Barometer: DPS310 (only works with Betaflight 4.3.0 and above)
Safety reminder:
The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). Make sure not to plug-in your DJI Air Unit directly when youre flying 6S, because this would fry it! BEC to add for your 6S build can be found here: https://shop.iflight-rc.com/index.php?route=product/product&product_id=747
Small motor 4S builds should usually need an additional capacitor of at least 16V/220uF, for 6S go up to 35V or even 50V. Bigger motors have a bigger current draw, higher voltage spikes and more serious back EMF (motor braking, works like a generator). Make sure to add big enough or even bigger low ESR capacitors on the AIO battery pad or on your battery lead the more aggressive motors you fly. Theres a choice of capacitors in the package, but its never a bad idea to make sure to protect your board. Smaller boards have less capacitance which has to be covered with external capacitors, theres no way around.
Our new DPS310 Barometer has more accuracy than the older BMP280 before but can not be activated in Betaflight below 4.3.0 which is currently in beta state (December 2020).

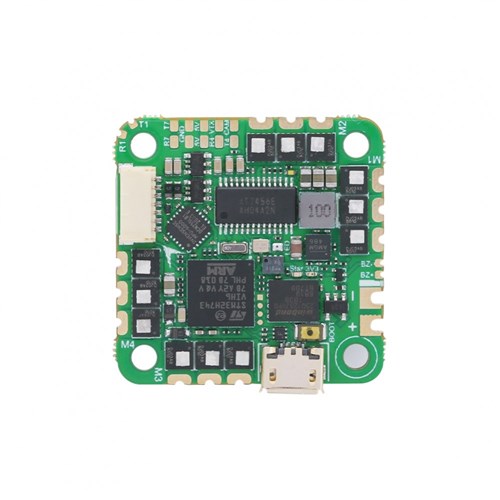

FC // Beast H7 AIO
Specification:
MCU: BGA-STM32H743
Gyro: MPU6000
Blackbox: 16Mb Onboard Flash
BEC output: 5V 2.5A
Barometer: DPS310 (only works with Betaflight 4.3.0 and above)
Micro-USB
OSD: AT7456E
Uart:5 (UART1?UART2?UART3?UART4?UART7)
FC Firmware?IFLIGHT_H743_AIO
Mounting pattern: 25.5*25.5mm ?3mm
Dimensions: 32.5*32.5mm
Weight: 8.8g
ESC // 55A 2-6S
Specification:
Uarts: 5
Current Sensor: Yes
Input: 2-6S LIPO
Current scale: 200
Constant: 55A / Burst: 60A
BLHeli: BLHeli-S
Telemetry: no
ESC Firmware: BlheliS G-H-30
Mounting pattern: 25.5*25.5mm/?3mm
Dimensions:?32.5*32.5mm
Package Includes:
- Beast H7 AIO × 1
- Capacitor 470uF/16V x 1
- Capacitor 470uF/35V x 1
- XT60 12AWG cable 100mm x 1
- XT30U 18AWG cable 70mm x 1
- 14AWG Silicone Cable Red 100mm x 1
- 14AWG Silicone Cable Black 100mm x 1
-1.0-7P cable 50mm-28mm x 1
-1.0-7P cable 50mm x 1
- M2 silicon grommets x 4
- M2*12mm screws x 8
- M2 Transparent Nylon Nut x 8
- 0.8mm black Heat shrink tube 10mm x 8
