Produktinformation

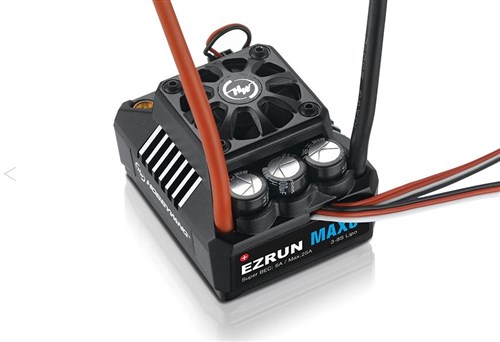

Hobbywing EzRun Max6 är vattentålig och konstruerad för bilar upp till 1/6 skala och 8S lipo. Levereras utan kontakter, men 20cm trådar ingår. Motorkontakterna på styrenheten är 6,5 mm. Stödjer alla Hobbywings programmeringsboxar.
PS! Produkttexten är maskinöversatt från norska.
| Storlek | 70 X 56 x 47 mm |
| Vikt | 240G |
NBDetta är en extremt kraftfull ESC, så det är viktigt att ta bort kugghjulet när du installerar igen och gör kalibrering och programmering innan du monterar kugghjulet. Det rekommenderas alltid att hålla hjulen i luften under start.
Product details in english
Specifications
| Product Name | EzRun MAX6 |
| Product Number | 30105000 |
Type
| Scale | 1/6th |
| Brushed/Brushless | BL |
| Sensored/Sensorless | SL |
| Waterproof | WP |
Specifications
| Cont./Peak Current | 160A/1050A |
| Input Voltage | 3-8S LiPo/9-24 Cells NiMH |
| BEC Output | Switch Mode:6V/7.4V, 6A |
Wires & Connectors
| Input Wires | Red-10AWG-200mm*1 |
| Black-10AWG-200mm*1 |
| Output Wires | Black-10AWG-200mm*3 |
| Input Connectors | No |
| Output Connectors | 6.5mm Female Gold Connectors (pre-soldered onto the PCB) |
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
| Size | 35x35x15mm |
| Voltage Range | 5-7.4V |
| Powered by | Powered by BEC |
ESC Programing via
| SET Button on ESC | Supported |
| LED Program Box | Supported |
| LCD Program Box | Supported |
| WiFi Module | Supported |
| Program Port | FAN/Program Port |
Firmware
| Firmware Upgrade | Supported |
Size & Weight
Applications
| Motors | SL BL Motors/SD BL Motors(only in SL mode) |
| Vehicles | 1/6thTouring Car/Buggy/TrucK |
| KV Rating/T Count | 6S LiPo: KV<1500 / 8S LiPo: KV<1200 / 5892size motors |
Installation & Connection
This is an extremely powerful brushless motor system. For your safety and the safety of those around you, we strongly recommend removing the pinion before performing calibration and programming functions with this system, and keeping wheels in the air when you turn on the ESC.
