Produktinformation

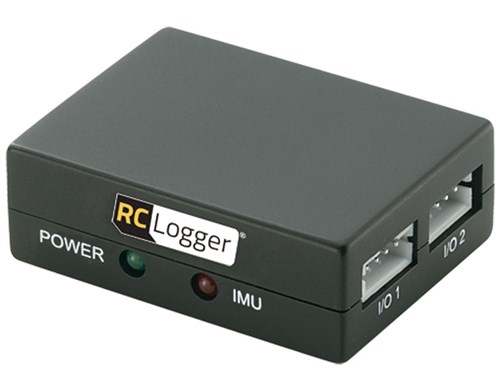

By using Magnetometer, Gyroscope and Accelerometer with 3D orientation and calculation algorithm to determine pitch angle, yaw angle, roll angle, direction, acceleration, angular and velocity during flight.
MEMS Sensor technology
3-axis Magnetometer
3-axis Accelerometer
3-axis Gyroscope
| Included | Orientation & G-Force module |
| Logger Connection Cable to connect to RC Logger HD, RC Logger HD2 / RC Logger LC |
| Module Connection Cable to connect to other sensors |
| Mounting plate (for tail boom mounting) |
| Operating instructions |
| Current consumption | ~60 mA |
| Operating temperature | -10 to +60 Celsius |
| Operating voltage | 3.6 to 6 V/DC |
| Resolution | <= 1 Degree |
| Sampling rate | 5 Hz |
| Storage temperature | -20 to +60 Celsius |
| Dimensions (W x H x D) | 43 x 15 x 33 mm |
| Weight | 12 g |
| Accelerometer | Triple axis, 16-bit, ±6 g |
| Direction Range | 0 to 360 Degree |
| Gyroscope | Triple axis, 16-bit, ±2000 Degree per second |
| Magnetometer | Triple axis, 24-bit, ±11 Gauss |
| Pitch range | -90 to +90 Degree |
| Roll range | -180 to +180 Degree |
